| Reader |
|
|

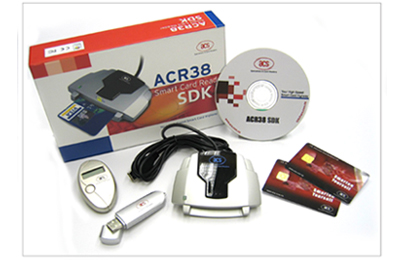

| Reader- ACR38 Software Development Kit |
|
|
|
With the fast growth of personal computing standards, the ACR38 smart card reader/writer is a USB full speed device designed for use in the PC environment today.
This reader series combines a modern design with the latest technology, and makes it a suitable solution for demanding environments. ACR38 has an optional built-in Security Access Module (SAM) slot that supports various high security applications. It is ideal for use in network security, electronic payment systems, electronic identifications as well as other advanced smart card applications. Other casing designs are also available.
|
|
|
Technical Specifications
|
|
|
|
|
|
|
Interface
|
|
|
USB full speed
|
|
|
Supply Voltage
|
|
|
Regulated 5V DC
|
|
|
Supply Current
|
|
|
max. 50mA
|
|
|
Operating Temperature
|
|
|
0-50°C
|
|
|
CLK Frequency
|
|
|
4 MHz
|
|
|
Standards / Certifications
|
|
|
EMV Level 1, ISO7816-1/2/3, PC/SC, CE, FCC, Microsoft WHQL 98, ME, 2K, XP
|
|
|
Operating System Support
|
|
|
Windows 98, Me, 2000, and XP
|
|
|
|
|
Standard features for the ACR38 reader
|
|
|
|
|
|
|
|
|
|
Full speed interface to PC with simple command structure
|
|
|
|
|
|
Read and write all microprocessor cards with T=0, T=1 protocols
|
|
|
|
|
|
Supports SLE 4418/28/32/42 memory cards
|
|
|
|
|
|
Supports most common memory-based smart cards, including I2C bus protocol cards (from 1K bits up to 1024K bits) and secure memory cards (Atmel AT88SC153 and AT88SC1608)
|
|
|
|
|
|
Support 1.8V. 3V and 5V MCU cards
|
|
|
|
|
|
Short Circuit Protection
|
|
|
|
|
|
Certificate of conformance: ISO 7816-1/2/3, PC/SC, CE, FCC, Microsoft WHQL, EMV certified
|
|
|
|
|
|
ISO7816-1/2/3 compatible smart card interface
|
|
|
|
|
Typical Applications
|
|
|
|
|
|
|
|
|
|
Home Banking and Home Shopping
|
|
|
|
|
|
Electronic Commerce
|
|
|
|
|
|
Checking the balance of account of re-loading an electronic purses
|
|
|
|
|
|
Network access control
|
|
|
|
|
|
S/W locking
|
|
|
|
|
|
Digital signature
|
|
|
|
|
|
Loyalty and promotions
|
|
|
|
|
|
Stored value
|
|
|
|
|
|
Identification
|
|
|
|
|
|
Ticketing
|
|
|
|
|
|
Parking and toll collection
|
|
|
|
|
|
Online gaming
|
|
|
|
|
Software Development Kit (SDK) Available
|
|
|
|
|
|
|
